ROEQ Cart Solutions

FOR MiR AMRs

Increase the payload capability of your MiR AMRs by using ROEQ Cart solutions

ROEQ Cart solutions provide a safe, reliable and versatile solution for transporting cargo between work stations.

Choose from free-space pick-up or docking station options.

With ROEQ cart solutions, you:

dramatically increase the payload capability of your MiR AMR – up to doubling the payload. See ROEQ TMS-C500 Ext solution as an example
can add cart rails or customized fixtures such as shelves on the carts via mounting holes in the cart
set up all your ROEQ top modules easily and consistently via ROEQ Assist – our setup software which also helps with safety settings, easy servicing and reduced downtime.

new roeq docking station for mir250 carts

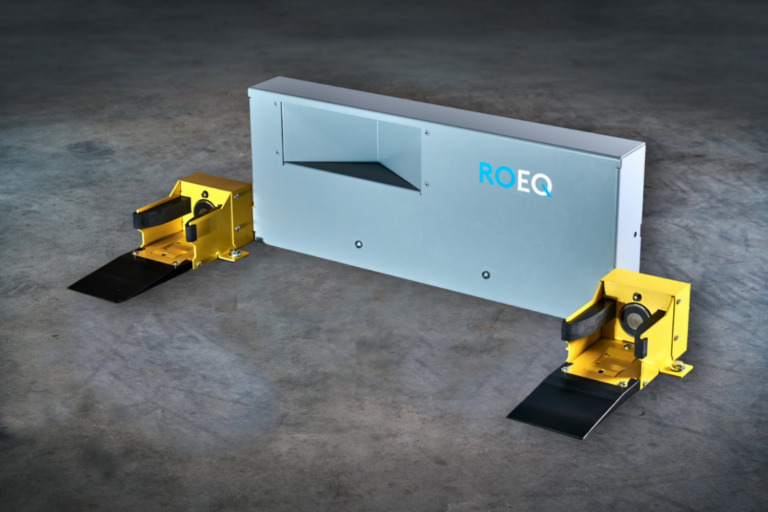

ROEQ DS500 docking station is a precise and reliable docking station for ROEQ S-Cart500 Ext and S-Cart500W. Choose between DS500 Active or DS500 Passive for features that suit your automation needs.

ROEQ CART SOLUTION - TMS-C1500

Up to 1500 kg with MiR1350

Top modules

TMS-C1500

Carts

S-Cart800/1500

Accessories

S-Cart Rails

ROEQ CART SOLUTION - TMS-C800

Up to 800 kg with MiR600

Top modules

TMS-C800

Carts

S-Cart800/1500

Accessories

S-Cart Rails

ROEQ CART SOLUTION - TMS-C500 EXT

Up to 500 kg with MiR250

Top modules

TMS-C500 Ext

Carts

S-Cart500W

S-Cart500 Ext

Accessories

S-Cart Rails

DS500 Active / Passive

ROEQ CART SOLUTION - TMS-C300 EXT

Up to 300 kg with MiR250

Top modules

TMS-C300 Ext

Carts

S-Cart300

S-Cart500W

S-Cart500 Ext

Accessories

S-Cart Rails

DS500 Active / Passive

ROEQ S-Carts

for the MiR Shelf Carrier 250 TM

Top Modules

MiR Shelf Carrier 250 TM

To be purchased through MiR

Carts

S-Cart300

S-Cart500W

S-Cart500 Ext

Accessories

S-Cart Rails

ROEQ LIFTER SOLUTION – TML200

for the MiR250

Top Modules

TML200

Cart

S-Cart300L

MiR Robot Compatibility

The S-Cart 500 and 300 solutions work with

The S-Cart800/1500 solution works with

Any questions?

Ask about an application

Mission vision statement

ROEQ, part of the flourishing Danish robotics cluster on the island of Funen, was founded in 2017 and has the ambition to become the leading global manufacturer of well-engineered, easy-to-use standard mobile robotic equipment to turn your autonomous mobile robot into a powerful, flexible, multi-tasking worker.

Contact us

By sending the above form, you consent to allow ROEQ to store and process the personal information submitted above to provide you the content requested.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

+45 61 31 06 93

[email protected]

Glasvaenget 9, 5492 Vissenbjerg
Denmark

TMS-C1500

The ROEQ TMS-C1500 is designed to transport heavy loads. Up to 1500 kg* can be transported on the ROEQ S-Cart1500 with MiR1350

Robot compatibility:
MiR1350

ROEQ product compatibility:
S-Cart800/1500, S-Cart Rails, I/O Kit

Payload*:
TMS-C1500 with S-Cart800/1500: Up to1500 kg/3307 lbs

Size (l x w x h):
1304 x 864 x 91mm / 51.3 x 34 x 3.6“

Substantially increases the payload potential of your MiR robot
Pick up and drop off in free space
I/O Kit for connecting 3rd party equipment like light towers, etc.
Includes safety configuration and ROEQ Assist software for fast and consistent setup

*payload capability depends on factors like weight distribution, center of mass, floor conditions etc. Guidelines must be adhered to. Contact ROEQ/ROEQ Partner for advice.

S-Cart800/1500

A ROEQ cart system increases the capability of your MiR robot in several ways: The robot can move carts while others are being loaded/unloaded, leading to less idle time for the robot; one robot can handle various types and sizes of goods on different carts; and the payload capability is increased, enabling a smaller robot to do the job of a larger.

Cart for TMS-C800 and TMS-C1500, that can take heavy loads of up to 800 kg* / 1500 kg*

Robot compatibility:
MiR600, MiR1350

ROEQ product compatibility:
TMS-C800, TMS-C1500, S-Cart Rails

Payload*:
S-Cart800/1500 with TMS-C800 (MiR600): Up to 800 kg / 1763 lbs
S-Cart800/1500 with TMS-C1500 (MiR1350): Up to 1500 kg / 3307 lbs

Size (l x w x h): 1300 x 1235 x 474mm/ 51.2 x 48.6 x 18.7”

Thread size: 4 x M10

Attachment holes: 1250 x 1175mm/ 49.21 x 46.26”

Can transport up to 800 kg* / 1500 kg*
Large cargo area for large loads – e.g. 48×48 inch pallets
Can be manually operated by personnel
Attachment holes for third party equipment
Rails can be easily attached for transport of US and Euro pallets

*payload capability depends on factors like weight distribution, center of mass, floor conditions etc. Guidelines for TMS-C800 TMS-C1500 must be adhered to.Contact ROEQ/ROEQ Partner for advice.

TMS-C800

The ROEQ TMS-C800 is designed to transport heavy loads. Up to 800 kg* can be transported on the ROEQ S-Cart800/1500 with MiR600.

Robot compatibility:
MiR600

ROEQ product compatibility:
S-Cart800/1500, S-Cart Rails, I/O Kit

Payload*:
TMS-C800 with S-Cart800/1500: Up to 800 kg/1763 lbs

Size (l x w x h):
1304 x 864 x 91mm / 51.3 x 34 x 3.6“

Substantially increases the payload potential of your MiR robot
Pick up and drop off in free space
I/O Kit for connecting 3rd party equipment like light towers, etc.
Includes safety configuration and ROEQ Assist software for fast and consistent setup

*payload capability depends on factors like weight distribution, center of mass, floor conditions etc. Guidelines must be adhered to. Contact ROEQ/ROEQ Partner for advice.

TMS-C500 Ext

The ROEQ TMS-C500 Ext is a top module designed to be used with the ROEQ S-Cart500 series on the MiR250. This extended top module enables the MiR250 to safely handle long loads, and when combined with the S-Cart500 series it can pick up, transport and drop off payloads of up to 500kg, effectively doubling the payload potential of the robot.

Robot compatibility:
MiR250

ROEQ product compatibility:
S-Cart500 series, S-Cart Rails

Payload*:
TMS-C500 Ext with S-Cart500 series: Up to 500 kg/1102 lbs

Size (l x w x h):
1200 x 560 x 76 mm / 47.2 x 22 x 3“

Easy access to emergency stop when transporting long loads
– Up to 1200 mm/48 inches
Doubles the payload potential of your MiR250 robot
Pick up and drop off in free space
Safety zones adjust automatically when the TMS-C500 Ext attaches to the ROEQ cart
Includes safety configuration and ROEQ Assist software for fast and consistent setup

*payload capability depends on factors like weight distribution, center of mass, floor conditions etc. Guidelines for TMS-C500 Ext must be adhered to. Contact ROEQ/ROEQ Partner for advice.

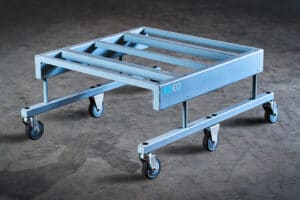

S-Cart500 Ext

A shelf cart developed to pick up, transport and drop off loads of up to 500 kg/1100 lbs, in free space, when combined with the ROEQ TMS-C500 Ext top module and the MiR250. The increased wheelbase gives increased tilt stability for longer goods.

Robot compatibility:
MiR250

ROEQ product compatibility:
TMS-C500 Ext, TMS-C300 Ext, S-Cart Rails, ROEQ DS500 docking station

Payload:
Up to 500 kg/1102 lbs with ROEQ TMS-C500 Ext top module.
Up to 300 kg/661 lbs with ROEQ TMS-C300 Ext top module.
For high payloads please contact your ROEQ Partner for best practice.

Size (l x w x h): 790 x 800 x 423 mm/31.1″ x 31.5″ x 16.7″

Length of Wheelbase: 1000 mm/39.4″

Increased wheelbase -> increased tilt stability
Designed for transport of longer goods
Middle wheels for better maneuverability
Pick up and drop off in free space
Attachment holes in the corners for attaching customized equipment
Comes with one ESD wheel as standard

TML200

The new ROEQ Top Module Lifter TML200 for the MiR250 is a flexible top module that can lift, transport and drop off pallets, crates and racks, as well as shelf carts. A versatile solution for transporting different types of loads with only small adjustments. For equipment and accessories designed to work with the TML200, see TML200 Forks, PR250 Pallet Rack, S-Cart300L and IO kit TML200.

Robot compatibility: MiR250

ROEQ product compatibility: PR250, TML200 Forks, S-Cart300L

Payload: 200kg/441lbs

Size (l x w): 780 x 560 x 70mm / 30.7” x 22” x 2.8”

Stroke: 40mm / 1.6”

Works as lifter to transport crates, pallets, racks or shelf carts
Lifts pallets or crates directly off a pallet rack e.g. PR250. Pallet racks can be set against a wall or work as a pickup/drop off and drive through.
Comes with centering cones for lifting and transporting the S-Cart300L – ideal if working on floors with reduced friction e.g. polished or dusty.
Cargo sensor for detecting load on module – to avoid errors at pickup/drop off
Mounting holes for attaching equipment – e.g. TML200 Forks for lifting pallets
Comes with ROEQ Assist software tool, which integrates with MiR software for an easier start up and set up
Easily adapted to perform multiple tasks

S-Cart300L

The S-Cart300L for the MiR250 has been developed to work with the TML200 top module. It enables the TML200 to lift and transport payloads up to 170kg/374lbs. on the MiR250 – ideal in situations where floors have reduced traction, such as polished or dusty floors. The cart attaches to the TML200 using the centering cones which are mounted on the TML200 top module.

Robot compatibility:
MiR250

ROEQ product compatibility:
TML200, TMS-C300 Ext + MiR Shelf Carrier 250 TM

Payload:
170kg / 374lbs. when lifted
300kg / 661lbs. when rolled on the ground

Size (l x w x h): 790 x 800 x 423mm / 31.1″ x 31.5″ x 16.7″

Works with the TML200, where it can be transported in lifted position. Ideal in conditions with reduced friction.
Can be manually rolled away by operators
Pick up and drop off in free space – docking station is not required
Attachment holes in the corners for attaching customized equipment
Comes with one ESD wheel as standard
