Lifter Modules
TML200
A flexible top module that can function as a lifter for pallets, crates and racks, as well as for carts.
Robot compatibility: OMRON LD-250
ROEQ product compatibility: PR200, TML Forks, Cart500
Payload: 200kg/441lbs
Size (l x w): 1087 x 691 x 66.5-106.5 mm
/ 42.8 x 27.2 x 2.6-4.2 “
Stroke: 40mm / 1.6”
- Cargo sensor for detecting load on module
– to avoid errors at pick up/drop off - Mounting holes for attaching equipment
e.g. TML200 Forks for lifting pallets, or for
building extensions on top - Can lift Cart500 e.g. for transporting on
floors with reduced friction

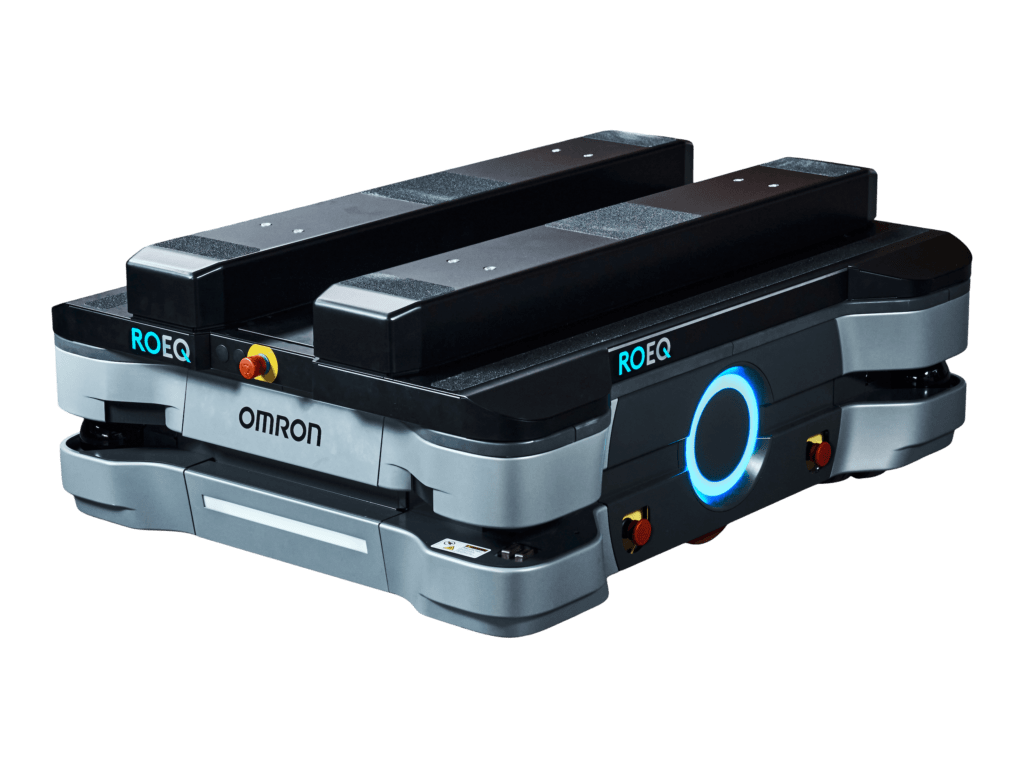

TML500/750 EU
The ROEQ Pallet Lift top module has been developed to transport euro pallets with payloads up to 510kg on the OMRON MD-650 and up to 760 kg on the MD-900.
Robot compatibility:
OMRON MD-650 and OMRON MD-900
ROEQ product compatibility:
PR750 EU (pallet rack EU version) ROEQ Cargo Sensor Kit,
Payload:
510 kg /1120 lbs on OMRON MD-650
760 kg/1680 lbs on MD-900
Stroke:
70 mm / 2.8″
Size (L x W ): euro pallets (1200×800 mm)
- Threaded mounting holes for adding customized equipment
- Includes ROEQ Assist software
TML500/750 US
The ROEQ Pallet Lift US top module has been developed to transport US pallets, and other cargo, with payloads up to 510 kg on the OMRON MD-650, and up to 760 kg on the OMRON MD-900 AMR.
Robot compatibility:
OMRON MD-650 and OMRON MD-900
ROEQ product compatibility:
PR750 US (pallet rack US version)
ROEQ Cargo Sensor Kit,
Payload:
510 kg /1120lbs on OMRON
MD-650
760 kg /1680lbs on OMRON
MD-900
Stroke:
70mm / 2.75”
- Threaded mounting holes for adding customized equipment
- Includes ROEQ Assist software
TML1200
Robot compatibility:
MiR600, MiR1350
Payload:
Payload on MiR600 = 440kg/970lb
Payload on Mir1350 = 1200kg/2645lb
Size (l x w): 1260mm x 820mm / 49.6″ x 32.3″
Lifter height without robot: 140mm – 380mm / 5.5″ – 15″
Stroke: 240mm / 9.4″
Attachment holes: 957mm x 650mm / 37.7″ x 25.6″
Thread size: M12
- Can pick up and deliver goods in different heights
- Lifter doesn’t have to return to its lowest position for transport to reduce operation time
- Compact when lowered (140 mm/5.5”)
- Works with pallet racks, stationary pick-up stations with rollers/gravity rollers
- Equipped with mounting holes for customized accessories (e.g. fork plates)
TML200
The new ROEQ Top Module Lifter TML200 for the MiR250 is a flexible top module that can lift, transport and drop off pallets, crates and racks, as well as shelf carts. A versatile solution for transporting different types of loads with only small adjustments. For equipment and accessories designed to work with the TML200, see TML200 Forks, PR250 Pallet Rack, S-Cart300L and IO kit TML200.
Robot compatibility: MiR250
ROEQ product compatibility: PR250, TML200 Forks, S-Cart300L
Payload: 200kg/441lbs
Size (l x w): 780 x 560 x 70mm / 30.7” x 22” x 2.8”
Stroke: 40mm / 1.6”
- Works as lifter to transport crates, pallets, racks or shelf carts
- Lifts pallets or crates directly off a pallet rack e.g. PR250. Pallet racks can be set against a wall or work as a pickup/drop off and drive through.
- Comes with centering cones for lifting and transporting the S-Cart300L – ideal if working on floors with reduced friction e.g. polished or dusty.
- Cargo sensor for detecting load on module – to avoid errors at pickup/drop off
- Mounting holes for attaching equipment – e.g. TML200 Forks for lifting pallets
- Comes with ROEQ Assist software tool, which integrates with MiR software for an easier start up and set up
- Easily adapted to perform multiple tasks
TML150
Robot compatibility:
MiR100, MiR200, MiR250 + AM250
ROEQ product compatibility:
TML150 Forks
Payload:
MiR100: 50kg / 110Ibs
MiR200/250: 150kg / 331lbs
Size (l x w): 800mm x 606mm / 31.5″ x 23.9″
Lifter height: 75mm – 100mm / 3.0″ – 3.9″
Stroke: 25mm/1.0″
Attachment holes: 520mm x 399mm / 20.5″ x 15.7″
Thread size: M6
- Can be used with fork plates TML150 Forks mounted on the top module to deliver or collect materials
- Safety zone extended upwards to take into consideration any increase in height footprint
