Accessories
AM250
Robot compatibility: MiR250
ROEQ product compatibility: TMC300, TMC300 Ext, TMR150, TRL150
Size (l x w x h): 724mm x 530mm x 57mm/28.5″ x 20.9″ x 2.24″
- Makes the MiR250 compatible with ROEQ products and top modules that work with MiR100/200
GuardCom System
Robot compatibility:
MiR100, MiR200, MiR250, MiR500, MiR600, MiR1000, MiR1350
ROEQ product compatibility:
TR125 Manual, TR125 Auto, TR125 Manual 250, TR125 Auto 250, TR500, TR500 Auto, TR1000, TR1000 Auto
Size (l x w x h): 67mm x 586mm x 159mm – 189mm/2.64″ x 23.1″ x 6.26″ – 7.44″ (height is including Guard up or down)
GuardCom: Mounted on any stationary conveyor station
GuardCom Connect: Mounted on any ROEQ top roller
Cart Rails
ROEQ product compatibility:
Cart500 for OMRON
The set of rails can be used to transport US pallets and euro pallets. They are adjustable to accommodate both pallet types and they ensure the pallet remains in place during transport.

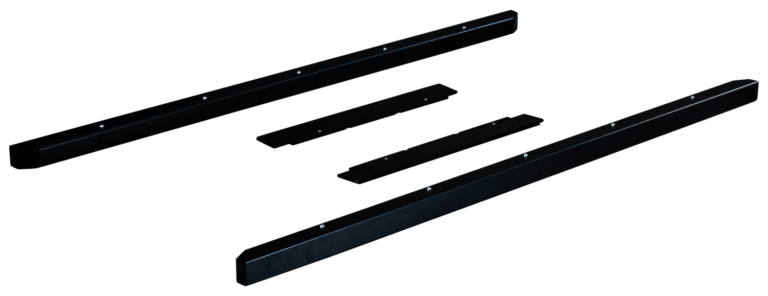

Side Bars
For additional safety on ROEQ Top Rollers, when loads do not exceed the width of the roller area. Available for euro or US pallet sizes
ROEQ product compatibility: TR850 Auto/TR600 / TR1000 for Continental AMR

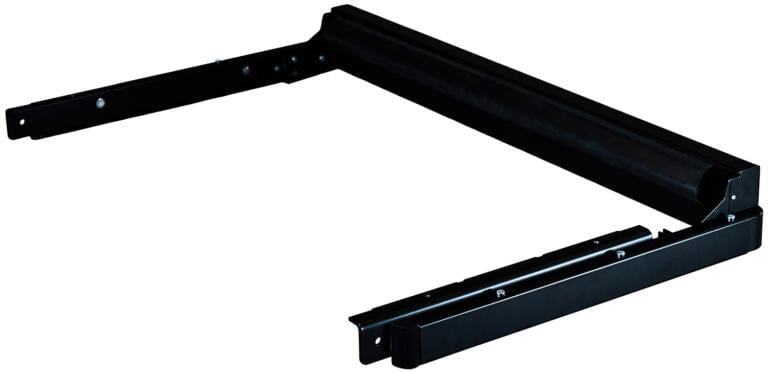

Long Cargo Kit
For safe transfer of long cargo on the ROEQ top rollers
ROEQ product compatibility:
TR850 Auto/TR600 / TR1000 for Continental AMR

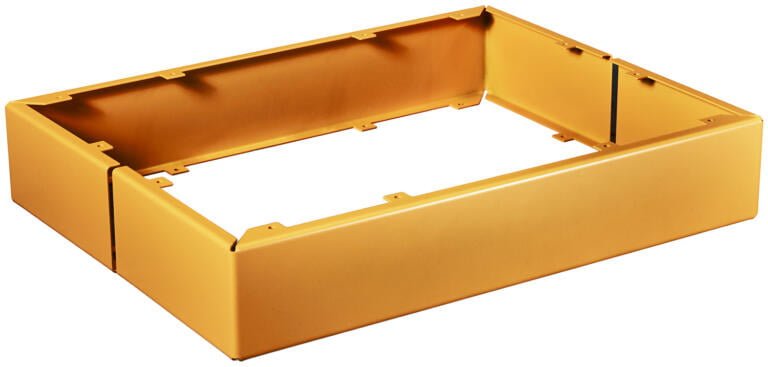

Height Kit
For increasing the height of the ROEQ Top Roller Module for Continental IL1200 AMR
ROEQ product compatibility:
TR850 Auto/TR600 / TR1000 for Continental AMR

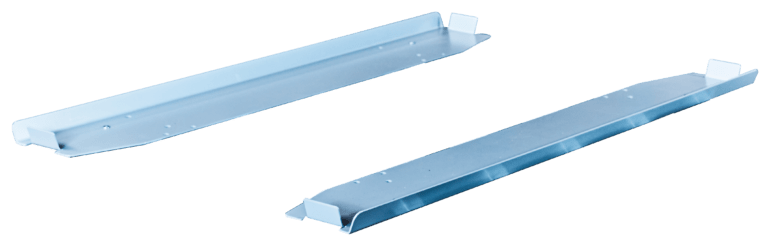

Cart300 Rails EU
ROEQ product compatibility:
Cart300
Size:
Euro pallet: 120cm x 80cm
Ideal in combination with our extended top modules for easy access to the emergency stop.
S-Cart Rails
The set of rails can be used to transport US pallets and EU pallets. They are adjustable to accommodate both pallet types and they ensure the pallet remains in place during transport.
ROEQ product compatibility:
S-Cart1500W, S-Cart500 series, S-Cart300 series

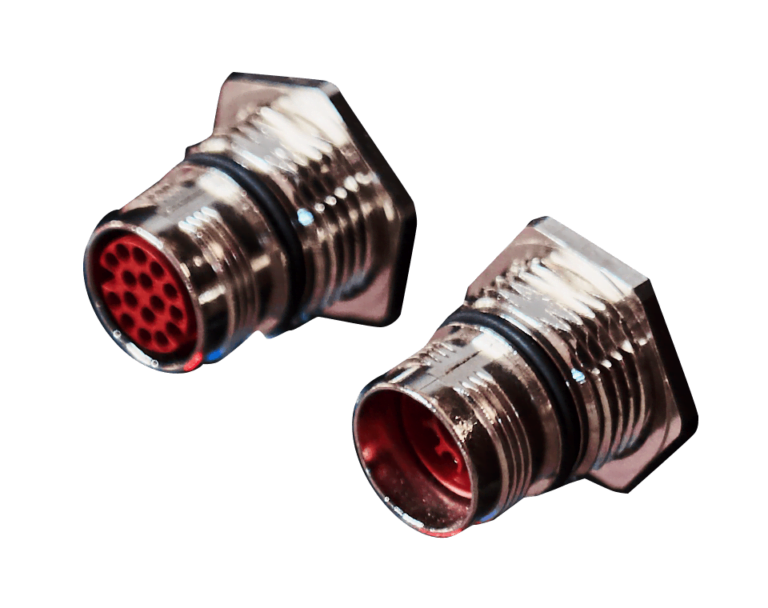

I/O Kit
Provides input/output for equipment like light towers, extra emergency stop, etc. Uses M17 connectors.
Robot compatibility:
MiR250 MiR500/1000
MiR600/1350
OMRON LD-250
ROEQ product compatibility:
TMC500, TMS-C1500, TR500, TR1000, TR500 Auto, TR1000 Auto, TML200, TML1000

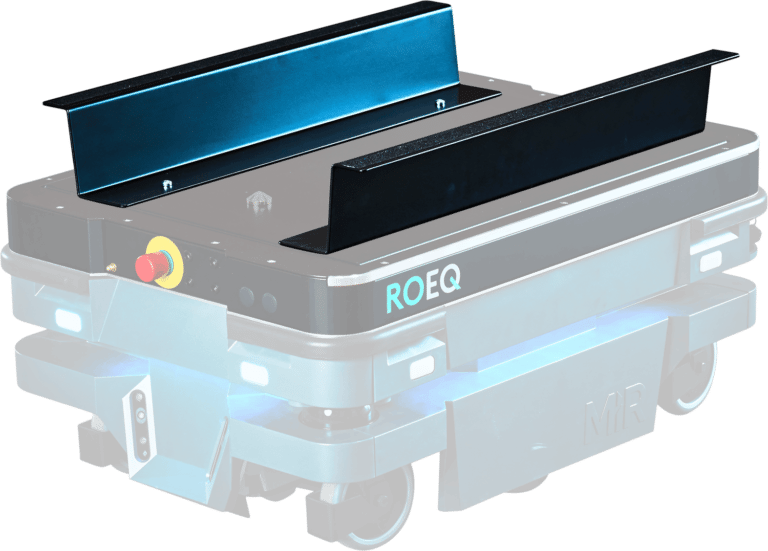

TML200 forks
Required when handling half pallets that do not have a flat bottom. Can be attached to the ROEQ TML200 which works with the MiR250. Also see PR250 pallet rack for a full solution.
Robot compatibility: MiR250
ROEQ product compatibility: PR250, TML200
- Enables handling of pallets that don’t have a flat bottom
- Holes for adjustment
- Friction tape supplied to prevent slippage.
TML150 forks
ROEQ product compatibility: TML150
Size (l x w x h): 800mm x 582mm x 83mm/20.5″ x 22.9″ x 3.27″
Space between rails: 220mm/8.66″ – adjustable between 420mm-112mm/16.5″ – 4.4″
Mounted directly on top of the TML150
Forks can be customized in height and distance apart to fit the geometry of your cargo and your production setup.
Extra lock Cart300E
ROEQ product compatibility: Cart300, Cart300E
Gives the operator the freedom to dock the cart independent of cart orientation.
Make your Cart300 unidirectional by adding an extra set of locking mechanisms to the cart.
The Cart 300E is for the Easy-pull-out docking station.
Weight blocks
Robot compatibility: MiR100, MiR200
Weight blocks for increased traction. Designed to be used in combination with the spring kit.
They are placed in the MiR robot in the extra battery room.
No modifications needed.
Reflector
ROEQ product compatibility: TR125 Manual, TR125 Auto, TR125 Manual 250, TR125 Auto 250 TR500, TR1000, TR500 Auto, TR1000 Auto
For use with our top rollers in setups with multiple receiving stations.
Extra lock Cart300P
ROEQ product compatibility: Cart300, Cart300P
Gives the operator the freedom to dock the cart independent of cart orientation.
Make your Cart300 unidirectional by adding an extra set of locking mechanisms to the cart.
The Cart300P is for the Precision docking station
Spring kit
Robot compatibility: MiR100, MiR200
Spring kit increases the traction of the robot while driving. This is required when the ground is uneven or when there is a lot of dust. The robot gets a better grip, leading to more stable functionality.
Used in combination with weight blocks.
